Incoloy 800/800H/800HT UNS N08800/N08810/N08811
ASME SB409 / ASTM B409 - 06(2011) Standard Specification for Nickel-Iron-Chromium Alloy Plate, Sheet, and Strip
This specification covers UNS N08120, UNS N08890, UNS N08800, UNS N08810, and UNS N08811* in the form of rolled plate, sheet, and strip. Alloy UNS N08800 is normally employed in service temperatures up to and including 1100°F (593°C). Alloys UNS N08120, UNS N08810, UNS N08811, and UNS N08890 are normally employed in service temperatures above 1100°F (593°C) where resistance to creep and rupture is required, and they are annealed to develop controlled grain size for optimum properties in this temperature range.
ASME SB408 / ASTM B408 - 06(2011) Standard Specification for Nickel-Iron-Chromium Alloy Rod and Bar
This specification covers nickel-iron-chromium alloys UNS N08120, UNS N08800, UNS N08810, UNS N08811, and UNS N08890 in the form of hot-worked and cold-worked rod and bar. The material shall be subjected to heat treatment, and its composition shall conform to the chemical requirements for nickel, chromium, iron, manganese, carbon, copper, silicon, sulfur, aluminum, titanium, columbium, molybdenum, niobium, tantalum, phosphorus, tungsten, cobalt, nitrogen, and boron. The material shall conform to mechanical property requirements for tensile strength, yield strength, and elongation. Test methods (chemical analysis, tension test, grain size test) shall be performed in accordance to referenced ASTM documents itemized herein.
ASME SB407 / ASTM B407 - 08a Standard Specification for Nickel-Iron-Chromium Alloy Seamless Pipe and Tube
This specification covers the standard requirements for nickel-iron-chromium alloy which include UNS N08120, UNS N08800, UNS N08801, UNS N08810, UNS N08811, UNS N08890, and UNS N06811 in the form of cold-worked and hot-finished annealed seamless pipe and tube. The materials shall be heat treated at certain annealing temperatures and shall conform to the chemical composition limits for nickel, chromium, iron, manganese, carbon, copper, silicon, sulfur, aluminum, titanium, columbium, molybdenum, niobium, tantalum, phosphorus, tungsten, cobalt, nitrogen, and boron. Planimetric method of measurement and tension test shall be conducted in full tubular size, longitudinal strip, or round specimens in the direction of fabrication to determine the grain size and mechanical properties, respectively. These materials shall conform to the specified grain size, yield strength, tensile strength, and elongation requirements. Each pipe or tube shall be subjected to hydrostatic or nondestructive eddy-current tests to determine the allowable fiber stress and to detect significant discontinuities such as drilled hole and transverse tangential notch. The cold-drawn material shall be commercially straight, uniform in quality and temper, smooth, and free of bends, kinks, and other injurious imperfections.
ASME SB829 / ASTM B829 - 04a(2009) Standard Specification for General Requirements for Nickel and Nickel Alloys Seamless Pipe and Tube
This general specification contains the mandatory requirements to the ASTM standards listed herein for seamless pipes and tubes made from nickel and nickel alloys. In case of conflict, the requirements listed in the particular product specification takes precedence over those listed here.
ASME SB515 / ASTM B515 - 95(2009) Standard Specification for Welded UNS N08120, UNS N08800, UNS N08810, and UNS N08811 Alloy Tubes
This specification covers welded UNS N08120, UNS N08800, UNS N08810 and UNS N08811 alloy boiler, heat exchanger, and condenser tubes for general corrosion resisting and low or high-temperature service. Tube shall be made from flat-rolled alloy by an automatic welding process with no addition or filler metal, shall be cold-worked subsequent to welding and prior to final annealing, and shall be furnished with oxide removed. When bright annealing is used, descaling is not necessary. The material shall conform to the chemical composition limits prescribed for nickel, chromium, iron, manganese, carbon, copper, silicon, sulfur, aluminum, titanium, columbium, molybdenum, phosphorus, tungsten, cobalt, nitrogen, and boron, as determined by chemical analysis, and to the specified mechanical properties including tensile strength, yield strength, and elongation. Annealed alloys shall conform to the the prescribed grain size. The following tests shall be performed: (1) flattening test, (2) flange test, (3) Class 1 nondestructive test by one of the following: hydrostatic, pneumatic (air underwater), eddy current, or ultrasonic test, and (4) Class 2 nondestructive test by leak and electric (eddy current, or ultrasonic test) test.
ASME SB751 / ASTM B751 - 08 Standard Specification for General Requirements for Nickel and Nickel Alloy Welded Tube
This general specification contains the mandatory requirements to the ASTM standards listed herein for longitudinally welded tubular products made from nickel and nickel alloys. In case of conflict, the requirements listed in the particular product specification takes precedence over those listed here.
ASME SB366 / ASTM B366 - 10a Standard Specification for Factory-Made Wrought Nickel and Nickel Alloy Fittings
This specification covers wrought welding fittings, including threaded fittings, for pressure piping, factory-made from nickel and nickel alloys. The term welding applies to butt-welding or socket-welding parts such as elbows, bends, caps, tees, reducers, lap-joint, and stub ends. This specification does not apply to cast welding fittings. Grades of nickel and nickel alloys included in this specification are designated with a prefix, WP or CR, based on dimensional and rating standards. WP grades have class designations (Class S, Class W, Class WX, and Class WU) to indicate whether seamless or welded construction is utilized and to indicate the nondestructive test method and extent of nondestructive examination (such as radiography and/or ultrasonic test). The material for wrought welding fittings may consist of forgings, rods, bars, plates, sheets, and seamless or welded pipe that conform to all the specified requirements. Forging or shaping operations may be performed by hammering, pressing, piercing, extruding, upsetting, rolling, bending, or fusion welding, or by a combination of two or more of these operations. Chemical and product analyses shall conform to the chemical composition prescribed. Requirements for tensile properties, heat treatment, tension test, and dimensions are detailed. Hydrostatic testing of wrought fittings is not required by this specification.
ASME SB564 / ASTM B564 - 10 Standard Specification for Nickel Alloy Forgings
This specification covers nickel alloy forgings. These alloys are classified into different grades according to their chemical composition. A chemical analysis shall be employed on each alloy in order to determine its chemical composition. Grain size and mechanical properties like tensile strength, yield strength, and elongation shall be measured. A tension test and nondestructive ultrasonic test shall be done on each specimen.
This specification covers forgings of nickel alloy UNS N02200, Ni-Cu alloy UNS N04400, Ni-Cr-Fe alloys UNS N06600, UNS N06603, and UNS N06690, Ni-Cr-Mo-Nb alloy UNS N06625, Ni-Cr-Mo-Si alloy UNS N06219, low-carbon Ni-Mo-Cr alloys UNS N10276 and UNS N06022, Ni-Cr-Mo-W alloy UNS N06110, low-carbon Ni-Cr-Mo-W alloy UNS N06686, Ni-Fe-Cr-Mo-Cu alloy UNS N08825, Fe-Ni-Cr-Mo-N alloy UNS N08367, low-carbon Ni-Cr-Mo alloys UNS N06035, UNS N06058, and UNS N06059, low carbon Ni-Cr-Mo-Cu alloy UNS N06200, low-carbon Ni-Mo-Cr alloy UNS N10362, Ni-Mo-Cr-Fe alloy UNS N10242, Ni-Mo alloys UNS N10665 and UNS N10675, low-carbon Ni-Fe-Cr-Mo-Cu alloy UNS N08031, Ni-Cr-W-Mo alloy UNS N06230, Ni-Cr-Co-Mo alloy UNS N06617, Ni-Co-Cr-Si alloy UNS N12160, Ni-Fe-Cr alloys, Ni-Mo alloy UNS N10629, Ni-Cr-Fe-Al alloy UNS N06025, Ni-Cr-Fe-Si alloy UNS N06045, Low-Carbon Ni-Mo-Cr-Ta alloy UNS N06210, Ni-Mo-Cr-Fe alloy UNS N10624, and low-carbon Cr-Ni-Fe-N alloy UNS R20033*.
The nickel-iron-chromium alloys are UNS N08120, UNS N08800, UNS N08810, and UNS N08811. Alloy UNS N08800 is normally employed in service temperatures up to and including 1100°F (593°C). Alloys UNS N08810, N08120, and UNS N08811 are normally employed in service temperatures above 1100°F where resistance to creep and rupture is required, and are annealed to develop controlled grain size for optimum properties in this temperature range.
Certificate & Inspection : c/w Calibration Works Certificate EN10204 3.1/DIN 50049 3.1/ISO 10474 3.1 Mill Test Report, NACE MR-01-03/NACE MR-01-75/ISO-15156, European Pressure Equipment Directive PED 97/23/EC, AD 2000-WO, ASME Boiler & Pressure Vessel Code Section-II Part-A Edition 2010, API 6A, with 3.2 certificate duly certified & approved by LRS-Lloyd's Register, GL-Germanischer Lloyd, BV-Bureau Veritas, DNV-Det Norske Veritas, ABS-American Bureau of Shipping, SGS, TUV, RINA, IRS, NORSOK APPROVED STANDARD M630, M650 Rev.3 NADCAP Certified in accordance with SAE Aerospace Standards
If you have any requirement of above items, please feel free to contact us
Regards,
CONTACT PERSON :
MUKESH SHAH
Director
Mobile No. 0091- 9820292499
Email - rolexmetal@vsnl.net
ROLEX ALLOYS INTERNATIONAL
( High Nickel Alloy & Super Alloy Materials )
57-A, KHATARGALLI
THAKURDWAR
MUMBAI - 400002, INDIA
TEL.No. 0091-22-23858802
TEL.No. 0091-22-23823963
FAX No. 0091-22-23898724
Website : www.rolexalloys.com
CHAIRMAN - chairman@rolexalloys.com
DIRECTOR MANAGING - managingdirector@rolexalloys.com
DIRECTOR TECHNICAL - technicaldirector@rolexalloys.com
INTERNATIONAL SALES - salesinternational@rolexalloys.com
DOMESTIC SALES - salesdomestic@rolexalloys.com
INFORMATION GENERAL - info@rolexalloys.com
GENERAL SALES - sales@rolexalloys.com
SERVICE - service@rolexalloys.com
RECRUITMENT - career@rolexalloys.com
WEBMASTER - webmaster@rolexalloys.com
|
|
|
|

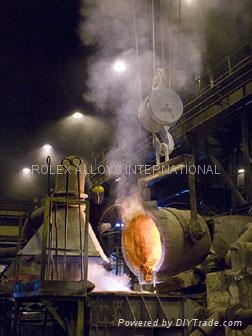

Product Image
|
