Hastelloy Alloy B3 / Alloy B-3 UNS N10675

Model No.︰Hastelloy B-3
Brand Name︰Hastelloy Alloy B3 / Alloy B-3 UNS N10675
Country of Origin︰United States
Unit Price︰-
Minimum Order︰-
Share on:

 Total 254 Related Items
Prev7879808182Next

Product Description
Hastelloy Alloy B3 / Alloy B-3 UNS N10675

ASME SB333 / ASTM B333 - 03(2008) Standard Specification for Nickel-Molybdenum Alloy Plate, Sheet, and Strip

This specification covers plate, sheet, and strip of nickel-molybdenum alloys covering UNS N10001, N10665, N10675, N10629, and N10624 for use in general corrosive service. Product analysis shall be performed on the alloy and shall conform to the chemical composition requirement in nickel, molybdenum, iron, chromium, carbon, silicon, cobalt, manganese, phosphorus, sulfur, vanadium, nickel, molybdenum, aluminum, columbium, copper, tantalum, titanium, tungsten, zirconium, and magnesium. Sheet and strip shall undergo hot or cold rolling, solution annealing, and descaling unless solution annealed in atmosphere. Plates shall undergo hot or cold rolling, solution annealing, and descaling. The material shall conform to the required tensile properties such as tensile strength, yield strength, elongation, and Rockwell hardness. Sheet and strip shall conform to the specified grain size requirement

This specification covers plate, sheet, and strip of nickel-molybdenum alloys (UNS N10001, N10665, N10675, N10629, and N10624)* as shown in Table 1, for use in general corrosive service.

The following products are covered under this specification:

Sheet and StripHot or cold rolled, solution annealed, and descaled unless solution anneal is performed in an atmosphere yielding a bright finish.

PlateHot or cold rolled, solution annealed, and descaled.

The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.

TABLE 1 Chemical Requirements

Element Composition Limits, %
Alloy
N10001
Alloy
N10665
Alloy
N10675
Alloy
N10629
Alloy
N10624
Nickel remainderA remainderA 65.0 min remainderA Bal
Molybdenum 26.030.0 26.030.0 27.032.0 26.030.0 21.0-25.0
Iron 4.06.0 2.0 max 1.03.0 1.06.0 5.0-8.0
Chromium 1.0 max 1.0 max 1.03.0 0.51.5 6.0-10.0
Carbon, max 0.05 0.02 0.01 0.01 0.01
Silicon, max 1.0 0.10 0.10 0.05 0.10
Cobalt, max 2.5 1.00 3.0 2.5 1.0
Manganese,
max
1.0 1.0 3.0 1.5 1.0
Phosphorus,
max
0.04 0.04 0.030 0.04 0.025
Sulfur, max 0.03 0.03 0.010 0.01 0.01
Vanadium 0.20.4 ... 0.20 max ... ...
Nickel plus
Molybdenum
... ... 94.098.0   ...
Aluminum ... ... 0.50 max 0.10.5 0.5
Columbium
(Nb), max
... ... 0.20   ...
Copper, max ... ... 0.20 0.5 0.5
Tantalum,
max
... ... 0.20   ...
Titanium,
max
... ... 0.20   ...
Tungsten,
max
... ... 3.0   ...
Zirconium,
max
... ... 0.10   ...
Magnesium,
max
... ... ... ... ...

A See Specification B 906.



ASTM Standards

B906 Specification for General Requirements for Flat-Rolled Nickel and Nickel Alloys Plate, Sheet, and Strip
E112 Test Methods for Determining Average Grain Size
E140 Hardness Conversion Tables for Metals Relationship Among Brinell Hardness, Vickers Hardness, Rockwell Hardness, Superficial Hardness, Knoop Hardness, and Scleroscope Hardness

plate; sheet; strip; UNS N10001; UNS N10629; UNS N10665; UNS N10675; UNS N10624; Hastelloy alloy; UNS N10001 (Ni-Mo alloy, Hastelloy B); UNS N10629 (Ni-Mo alloy, B-4); UNS N10665 (Ni-Mo alloy, Hastelloy B-2); Corrosive service applications--plate/sheet/strip; Nickel alloy plate/sheet/strip--specifications; Nickel-molybdenum alloys--specifications

ASME SB335 / ASTM B335 - 03(2008) Standard Specification for Nickel-Molybdenum Alloy Rod

This specification covers rod of nickel-molybdenum alloys of UNS N10001, N10665, N10675, N10629, and N10624 for use in general corrosive service. The material shall conform to the required chemical composition for nickel, molybdenum, iron, chromium, carbon, silicon, cobalt, manganese, phosphorus, sulfur, vanadium, nickel, molybdenum, aluminum, columbium, copper, tantalum, titanium, tungsten, zirconium, and magnesium. The alloys shall conform to the required mechanical properties such as tensile strength, yield strength, elongation, and Rockwell hardness.

This specification covers rod of nickel-molybdenum alloys (UNS N10001, N10665, N10675, N10629, and N10624)* as shown in Table 1, for use in general corrosive service.

The following products are covered under this specification:

Rods 5/16to ¾ in. (7.94 to 19.05 mm) excl in diameter, hot or cold finished, solution annealed and pickled or mechanically descaled.

Rods ¾to 3½ in. (19.05 to 88.9 mm) incl in diameter, hot or cold finished, solution annealed, ground or turned.

The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.

TABLE 1 Chemical Requirements

Element Composition Limits, %
Alloy
N10001
Alloy
N10665
Alloy
N10675
Alloy
N10629
Alloy
N10624
Nickel remainderA remainderA 65.0 min remainderA Bal
Molybdenum 26.030.0 26.030.0 27.032.0 26.030.0 21.0-25.0
Iron 4.06.0 2.0 max 1.03.0 1.06.0 5.0-8.0
Chromium 1.0 max 1.0 max 1.03.0 0.51.5 6.0-10.0
Carbon,
max
0.05 0.02 0.01 0.01 0.01
Silicon, max 1.0 0.10 0.10 0.05 0.10
Cobalt, max 2.5 1.00 3.0 2.5 1.0
Manganese,
max
1.0 1.0 3.0 1.5 1.0
Phosphorus,
max
0.04 0.04 0.030 0.04 0.025
Sulfur, max 0.03 0.03 0.010 0.01 0.01
Vanadium 0.20.4 ... 0.20 max ... ...
Nickel plus
Molybdenum
... ... 94.098.0   ...
Aluminum ... ... 0.50 max 0.10.5 0.5
Columbium
(Nb), max
... ... 0.20   ...
Copper, max ... ... 0.20 0.5 0.5
Tantalum,
max
... ... 0.20   ...
Titanium,
max
... ... 0.20   ...
Tungsten,
max
... ... 3.0   ...
Zirconium,
max
... ... 0.10   ...
Magnesium,
max
... ... ... ... ...


ASTM Standards

B880 Specification for General Requirements for Chemical Check Analysis Limits for Nickel, Nickel Alloys and Cobalt Alloys
E8 Test Methods for Tension Testing of Metallic Materials
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E55 Practice for Sampling Wrought Nonferrous Metals and Alloys for Determination of Chemical Composition
E1473 Test Methods for Chemical Analysis of Nickel, Cobalt, and High-Temperature Alloys

rod; N10001; N10624; N10629; N10665; N10675; Nickel alloy rod/bar/wire--specifications; Nickel-molybdenum alloys--specifications; Hastelloy alloy; UNS N10001 (Ni-Mo alloy, Hastelloy B); UNS N10629 (Ni-Mo alloy, B-4); UNS N10665 (Ni-Mo alloy, Hastelloy B-2)

ASME SB366 / ASTM B366 - 10a Standard Specification for Factory-Made Wrought Nickel and Nickel Alloy Fittings

This specification covers wrought welding fittings, including threaded fittings, for pressure piping, factory-made from nickel and nickel alloys. The term welding applies to butt-welding or socket-welding parts such as elbows, bends, caps, tees, reducers, lap-joint, and stub ends. This specification does not apply to cast welding fittings. Grades of nickel and nickel alloys included in this specification are designated with a prefix, WP or CR, based on dimensional and rating standards. WP grades have class designations (Class S, Class W, Class WX, and Class WU) to indicate whether seamless or welded construction is utilized and to indicate the nondestructive test method and extent of nondestructive examination (such as radiography and/or ultrasonic test). The material for wrought welding fittings may consist of forgings, rods, bars, plates, sheets, and seamless or welded pipe that conform to all the specified requirements. Forging or shaping operations may be performed by hammering, pressing, piercing, extruding, upsetting, rolling, bending, or fusion welding, or by a combination of two or more of these operations. Chemical and product analyses shall conform to the chemical composition prescribed. Requirements for tensile properties, heat treatment, tension test, and dimensions are detailed. Hydrostatic testing of wrought fittings is not required by this specification.

This specification covers wrought welding fittings for pressure piping, factory-made from nickel and nickel alloys. Threaded fittings as covered in ASME B16.11 are also covered by this specification. The term welding applies to butt-welding or socket-welding parts such as 45 and 90° elbows, 180° bends, caps, tees, reducers, lap-joint stub ends, and other types, as covered by ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, and MSS SP-97.

Several grades of nickel and nickel alloys are included in this specification. Grades are designated with a prefix, WP or CR, based on the applicable ASME or MSS dimensional and rating standards.

Class WP fittings are those manufactured to the requirements of ASME B16.9, B16.11.

For each of the WP nickel and nickel alloy grades, several classes of fittings are covered to indicate whether seamless or welded construction was utilized. Class designations are also utilized to indicate the nondestructive test method and extent of nondestructive examination (NDE). Table 1 is general summary of the fitting classes applicable to all WP grades of nickel and nickel alloys covered by this specification. There are no classes for the CR grades. Specific requirements are covered elsewhere.

This specification does not apply to cast welding fittings.

Optional supplementary requirements are provided for fittings where a greater degree of examination is desired. These supplementary requirements call for additional tests. When desired, one or more of these may be specified in the order.

The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.

This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to become familiar with all hazards including those identified in the appropriate Material Safety Data Sheet (MSDS) for this product/material as provided by the manufacturer, to establish appropriate safety and health practices, and determine the applicability of regulatory limitations prior to use.

ASTM Standards

B127 Specification for Nickel-Copper Alloy (UNS N04400) Plate, Sheet, and Strip
B160 Specification for Nickel Rod and Bar
B161 Specification for Nickel Seamless Pipe and Tube
B162 Specification for Nickel Plate, Sheet, and Strip
B163 Specification for Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes
B164 Specification for Nickel-Copper Alloy Rod, Bar, and Wire
B165 Specification for Nickel-Copper Alloy (UNS N04400)* Seamless Pipe and Tube
B166 Specification for Nickel-Chromium-Iron Alloys (UNS N06600, N06601, N06603, N06690, N06693, N06025, N06045, and N06696)* and Nickel-Chromium-Cobalt-Molybdenum Alloy (UNS N06617) Rod, Bar, and Wire
B167 Specification for Nickel-Chromium-Iron Alloys (UNS N06600, N06601, N06603, N06690, N06693, N06025, N06045, and N06696)* and Nickel-Chromium-Cobalt-Molybdenum Alloy (UNS N06617) Seamless Pipe and Tube
B168 Specification for Nickel-Chromium-Iron Alloys (UNS N06600, N06601, N06603, N06690, N06693, N06025, N06045, and N06696) and Nickel-Chromium-Cobalt-Molybdenum Alloy (UNS N06617) Plate, Sheet, and Strip
B333 Specification for Nickel-Molybdenum Alloy Plate, Sheet, and Strip
B335 Specification for Nickel-Molybdenum Alloy Rod
B407 Specification for Nickel-Iron-Chromium Alloy Seamless Pipe and Tube
B408 Specification for Nickel-Iron-Chromium Alloy Rod and Bar
B409 Specification for Nickel-Iron-Chromium Alloy Plate, Sheet, and Strip
B423 Specification for Nickel-Iron-Chromium-Molybdenum-Copper Alloy (UNS N08825 and N08221)* Seamless Pipe and Tube
B424 Specification for Ni-Fe-Cr-Mo-Cu Alloy (UNS N08825 and UNS N08221)* Plate, Sheet, and Strip
B425 Specification for Ni-Fe-Cr-Mo-Cu Alloy (UNS N08825 and UNS N08221)* Rod and Bar
B434 Specification for Nickel-Molybdenum-Chromium-Iron Alloys (UNS N10003, UNS N10242)* Plate, Sheet, and Strip
B435 Specification for UNS N06002, UNS N06230, UNS N12160, and UNS R30556 Plate, Sheet, and Strip
B443 Specification for Nickel-Chromium-Molybdenum-Columbium Alloy(UNS N06625) and Nickel-Chromium-Molybdenum-SiliconAlloy (UNS N06219)* Plate, Sheet, and Strip
B444 Specification for Nickel-Chromium-Molybdenum-Columbium Alloys (UNS N06625 and UNS N06852) and Nickel-Chromium-Molybdenum-Silicon Alloy (UNS N06219) Pipe and Tube
B446 Specification for Nickel-Chromium-Molybdenum-Columbium Alloy (UNS N06625), Nickel-Chromium-Molybdenum-Silicon Alloy (UNS N06219), and Nickel-Chromium-Molybdenum-Tungsten Alloy (UNS N06650)* Rod and Bar
B462 Specification for Forged or Rolled UNS N06030, UNS N06022, UNS N06035, UNS N06200, UNS N06059, UNS N10362, UNS N06686, UNS N08020, UNS N08024, UNS N08026, UNS N08367, UNS N10276, UNS N10665, UNS N10675, UNS N10629, UNS N08031, UNS N06045, UNS N06025, and UNS R20033 Alloy Pipe Flanges, Forged Fitting, and Values and Parts for Corrosive High-Temperature Service
B463 Specification for UNS N08020 Alloy Plate, Sheet, and Strip
B464 Specification for Welded UNS N08020 Alloy Pipe
B468 Specification for Welded UNS N08020 Alloy Tubes
B472 Specification for Nickel Alloy Billets and Bars for Reforging
B473 Specification for UNS N08020, UNS N08024, and UNS N08026 Nickel Alloy Bar and Wire
B511 Specification for Nickel-Iron-Chromium-Silicon Alloy Bars and Shapes
B512 Specification for Nickel-Chromium-Silicon Alloy (UNS N08330) Billets and Bars
B514 Specification for Welded Nickel-Iron-Chromium Alloy Pipe
B515 Specification for Welded UNS N08120, UNS N08800, UNS N08810, and UNS N08811 Alloy Tubes
B516 Specification for Welded Nickel-Chromium-Iron Alloy (UNS N06600, UNS N06603, UNS N06025, and UNS N06045) Tubes
B517 Specification for Welded Nickel-Chromium-Iron-Alloy (UNS N06600, UNS N06603, UNS N06025, and UNS N06045) Pipe
B535 Specification for Nickel-Iron-Chromium-Silicon Alloys (UNS N08330 and N08332) Seamless Pipe and Tube
B536 Specification for Nickel-Iron-Chromium-Silicon Alloys (UNS N08330 and N08332) Plate, Sheet, and Strip
B564 Specification for Nickel Alloy Forgings
B572 Specification for UNS N06002, UNS N06230, UNS N12160, and UNS R30556 Rod
B573 Specification for Nickel-Molybdenum-Chromium-Iron Alloys (UNS N10003, N10242)* Rod
B574 Specification for Low-Carbon Nickel-Chromium-Molybdenum, Low-Carbon Nickel-Molybdenum-Chromium, Low-Carbon Nickel-Molybdenum-Chromium-Tantalum, Low-Carbon Nickel-Chromium-Molybdenum-Copper, and Low-Carbon Nickel-Chromium-Molybdenum-Tungsten Alloy Rod
B575 Specification for Low-Carbon Nickel-Chromium-Molybdenum, Low-Carbon Nickel-Chromium-Molybdenum-Copper, Low-Carbon Nickel-Chromium-Molybdenum-Tantalum, Low-Carbon Nickel-Chromium-Molybdenum-Tungsten, and Low-Carbon Nickel-Molybdenum-Chromium Alloy Plate, Sheet, and Strip
B581 Specification for Nickel-Chromium-Iron-Molybdenum-Copper Alloy Rod
B582 Specification for Nickel-Chromium-Iron-Molybdenum-Copper Alloy Plate, Sheet, and Strip
B619 Specification for Welded Nickel and Nickel-Cobalt Alloy Pipe
B622 Specification for Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube
B625 Specification for UNS N08925, UNS N08031, UNS N08932, UNS N08926, UNS N08354, and UNS R20033 Plate, Sheet, and Strip
B626 Specification for Welded Nickel and Nickel-Cobalt Alloy Tube
B649 Specification for Ni-Fe-Cr-Mo-Cu-N Low-Carbon Alloys (UNS N08925, UNS N08031, UNS N08354, and UNS N08926), and Cr-Ni-Fe-N Low-Carbon Alloy (UNS R20033) Bar and Wire, and Ni-Cr-Fe-Mo-N Alloy (UNS N08936) Wire
B673 Specification for UNS N08925, UNS N08354, and UNS N08926 Welded Pipe
B674 Specification for UNS N08925, UNS N08354, and UNS N08926 Welded Tube
B675 Specification for UNS N08367 Welded Pipe
B676 Specification for UNS N08367 Welded Tube
B677 Specification for UNS N08925, UNS N08354, and UNS N08926 Seamless Pipe and Tube
B688 Specification for Chromium-Nickel-Molybdenum-Iron (UNS N08366 and UNS N08367) Plate, Sheet, and Strip
B690 Specification for Iron-Nickel-Chromium-Molybdenum Alloys (UNS N08366 and UNS N08367) Seamless Pipe and Tube
B691 Specification for Iron-Nickel-Chromium-Molybdenum Alloys (UNS N08366 and UNS N08367) Rod, Bar, and Wire
B704 Specification for Welded UNS N06625, UNS N06219 and UNS N08825 Alloy Tubes
B705 Specification for Nickel-Alloy (UNS N06625, N06219 and N08825) Welded Pipe
B710 Specification for Nickel-Iron-Chromium-Silicon Alloy Welded Pipe
B729 Specification for Seamless UNS N08020, UNS N08026, and UNS N08024 Nickel-Alloy Pipe and Tube
B880 Specification for General Requirements for Chemical Check Analysis Limits for Nickel, Nickel Alloys and Cobalt Alloys
B899 Terminology Relating to Non-ferrous Metals and Alloys
E165 Practice for Liquid Penetrant Examination for General Industry
E1916 Guide for Identification and/or Segregation of Mixed Lots of Metals

ASME SB462 / ASTM B462 - 10e1 Standard Specification for Forged or Rolled UNS N06030, UNS N06022, UNS N06035, UNS N06200, UNS N06059, UNS N10362, UNS N06686, UNS N08020, UNS N08024, UNS N08026, UNS N08367, UNS N10276, UNS N10665, UNS N10675, UNS N10629, UNS N08031, UNS N06045

This specification covers nickel-chromium-molybdenum-columbium (UNS N06625), nickel-chromium-molybdenum-silicon alloy (UNS N06219), and nickel-chromium-molybdenum-tungsten alloy (UNS N06650) in the form of hot-worked rod and bar and cold-worked rod. The matreial shall conform to the required chemical composition for carbon, manganese, silicon, phosphorus, sulfur, chromium, columbium, tantalum, cobalt, molybdenum, iorn, aluminum, titanium, copper, nickel, tungsten, and nitrogen. The materials shall conform to the the heat treatment and room temperature tensile properties such as tensile strength, yield strength, and elongation. Dimensions of the alloys such as diameter, thickness, or width, length and straightness shall also be determined.

This specification covers forged or rolled UNS N06030, UNS N06035, UNS N06022, UNS N06200, UNS N06059, UNS N10362, UNS N06686, UNS N08020, UNS N08024, UNS N08026, UNS N08367, UNS N10276, UNS N10665, UNS N10675, UNS N10629, UNS N08031, UNS N06045, UNS N06025, and UNS R20033* pipe flanges, forged fittings, and valves and parts intended for corrosive high-temperature service.

The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.

ASTM Standards

A262 Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels
B166 Specification for Nickel-Chromium-Iron Alloys (UNS N06600, N06601, N06603, N06690, N06693, N06025, N06045, and N06696)* and Nickel-Chromium-Cobalt-Molybdenum Alloy (UNS N06617) Rod, Bar, and Wire
B335 Specification for Nickel-Molybdenum Alloy Rod
B408 Specification for Nickel-Iron-Chromium Alloy Rod and Bar
B472 Specification for Nickel Alloy Billets and Bars for Reforging
B473 Specification for UNS N08020, UNS N08024, and UNS N08026 Nickel Alloy Bar and Wire
B574 Specification for Low-Carbon Nickel-Chromium-Molybdenum, Low-Carbon Nickel-Molybdenum-Chromium, Low-Carbon Nickel-Molybdenum-Chromium-Tantalum, Low-Carbon Nickel-Chromium-Molybdenum-Copper, and Low-Carbon Nickel-Chromium-Molybdenum-Tungsten Alloy Rod
B581 Specification for Nickel-Chromium-Iron-Molybdenum-Copper Alloy Rod
B649 Specification for Ni-Fe-Cr-Mo-Cu-N Low-Carbon Alloys (UNS N08925, UNS N08031, UNS N08354, and UNS N08926), and Cr-Ni-Fe-N Low-Carbon Alloy (UNS R20033) Bar and Wire, and Ni-Cr-Fe-Mo-N Alloy (UNS N08936) Wire
B691 Specification for Iron-Nickel-Chromium-Molybdenum Alloys (UNS N08366 and UNS N08367) Rod, Bar, and Wire
B880 Specification for General Requirements for Chemical Check Analysis Limits for Nickel, Nickel Alloys and Cobalt Alloys
E8 Test Methods for Tension Testing of Metallic Materials
E527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)
E1473 Test Methods for Chemical Analysis of Nickel, Cobalt, and High-Temperature Alloys
E1916 Guide for Identification and/or Segregation of Mixed Lots of Metals

forgings; UNS N06030; UNS N06022; UNS N06035; UNS N06200; UNS N06059; UNS N10362; UNS N06686; UNS N08020; UNS N08024; UNS N08026; UNS N08367; UNS N10276; UNS N10665; UNS N10675; UNS N10629; UNS N08031; UNS N06045; UNS N06025; UNS R20033

ASME SB472 / ASTM B472 - 10 Standard Specification for Nickel Alloy Billets and Bars for Reforging

This specification covers UNS N06002, UNS N06030, UNS N06035, UNS N06022, UNS N06200, UNS N06230, UNS N06600, UNS N06617, UNS N06625, UNS N08020, UNS N08026, UNS N08024, UNS N08120, UNS N08926, UNS N08367, UNS N10242, UNS N10276, UNS N10665, UNS N10675, UNS N12160, UNS R20033, UNS N06059, UNS N06686, UNS N10629, UNS N08031, UNS N06045, UNS N06025, and UNS R30556 nickel alloy billets and bars for reforging. The products shall be hot worked from ingots by rolling, forging, extruding, hammering, or pressing. The material shall conform to the chemical composition requirements prescribed by the reference material. The chemical composition of the material shall be determined by chemical analysis in accordance with test method E1473.

This specification covers UNS N06002, UNS N06030, UNS N06035, UNS N06022, UNS N06200, UNS N10362, UNS N06230, UNS N06600, UNS N06617, UNS N06625, UNS N08020, UNS N08026, UNS N08024, UNS N08120, UNS N08926, UNS N08367, UNS N10242, UNS N10276, UNS N10665, UNS N10675, UNS N12160, UNS R20033, UNS N06059, UNS N06686, UNS N10629, UNS N08031, UNS N06045, UNS N06025, and UNS R30556* billets and bars for reforging.

The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.

ASTM Standards

A262 Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels
B880 Specification for General Requirements for Chemical Check Analysis Limits for Nickel, Nickel Alloys and Cobalt Alloys
E1473 Test Methods for Chemical Analysis of Nickel, Cobalt, and High-Temperature Alloys

bar; billet; UNS N06002; UNS N06030; UNS N06035; UNS N06022; UNS N06200; UNS N06230; UNS N06600; UNS N06617; UNS N06625; UNS N08020; UNS N08024; UNS N08026; UNS N01820; UNS N08367; UNS N08926; UNS N10242; UNS N10276; UNS N10665; UNS N10675; UNS N12160; UNS R20033; UNS R30556; UNS N06059; UNS N06686; UNS N10629; UNS N08031; UNS N06045; UNS N06025; Billets--Ni/Ni alloy; Carpenter alloy--specifications; Chromium-nickel-iron-molybdenum-copper alloy; Forgings--specifications; Nickel alloy rod/bar/wire--specifications; Nickel-chromium alloys--specifications; Nickel-iron alloy--specifications; Nickel-iron-chromium alloys--specifications; Reforging; UNS N08020 (Ni-Fe-Cr alloy, Carpenter 20Cb3); UNS N08024 (Cr-Ni-Fe-Mo-Cu alloy, columbium stabilized); UNS N08026 (Ni-Cr wrought alloy, Carpenter 20Mo6); UNS N08367 (Cr-Ni-Mo-N alloy, AL 6XN); UNS N08926 (Ni-Fe-Cr-Mo-Cu-N alloy, low C, N modified); UNS R20033 (Cr-Ni-Fe-Mo austenitic stainless steel, Alloy 33) ; ICS Number Code 0556

ASME SB564 / ASTM B564 - 10 Standard Specification for Nickel Alloy Forgings

This specification covers nickel alloy forgings. These alloys are classified into different grades according to their chemical composition. A chemical analysis shall be employed on each alloy in order to determine its chemical composition. Grain size and mechanical properties like tensile strength, yield strength, and elongation shall be measured. A tension test and nondestructive ultrasonic test shall be done on each specimen.

This specification covers forgings of nickel alloy UNS N02200, Ni-Cu alloy UNS N04400, Ni-Cr-Fe alloys UNS N06600, UNS N06603, and UNS N06690, Ni-Cr-Mo-Nb alloy UNS N06625, Ni-Cr-Mo-Si alloy UNS N06219, low-carbon Ni-Mo-Cr alloys UNS N10276 and UNS N06022, Ni-Cr-Mo-W alloy UNS N06110, low-carbon Ni-Cr-Mo-W alloy UNS N06686, Ni-Fe-Cr-Mo-Cu alloy UNS N08825, Fe-Ni-Cr-Mo-N alloy UNS N08367, low-carbon Ni-Cr-Mo alloys UNS N06035, UNS N06058, and UNS N06059, low carbon Ni-Cr-Mo-Cu alloy UNS N06200, low-carbon Ni-Mo-Cr alloy UNS N10362, Ni-Mo-Cr-Fe alloy UNS N10242, Ni-Mo alloys UNS N10665 and UNS N10675, low-carbon Ni-Fe-Cr-Mo-Cu alloy UNS N08031, Ni-Cr-W-Mo alloy UNS N06230, Ni-Cr-Co-Mo alloy UNS N06617, Ni-Co-Cr-Si alloy UNS N12160, Ni-Fe-Cr alloys, Ni-Mo alloy UNS N10629, Ni-Cr-Fe-Al alloy UNS N06025, Ni-Cr-Fe-Si alloy UNS N06045, Low-Carbon Ni-Mo-Cr-Ta alloy UNS N06210, Ni-Mo-Cr-Fe alloy UNS N10624, and low-carbon Cr-Ni-Fe-N alloy UNS R20033*.

The nickel-iron-chromium alloys are UNS N08120, UNS N08800, UNS N08810, and UNS N08811. Alloy UNS N08800 is normally employed in service temperatures up to and including 1100°F (593°C). Alloys UNS N08810, N08120, and UNS N08811 are normally employed in service temperatures above 1100°F where resistance to creep and rupture is required, and are annealed to develop controlled grain size for optimum properties in this temperature range.

The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.

This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to become familiar with all hazards including those identified in the appropriate Material Safety Data Sheet (MSDS) for this product/material as provided by the manufacturer, to establish appropriate safety and health practices, and determine the applicability of regulatory limitations prior to use.

ASTM Standards

B880 Specification for General Requirements for Chemical Check Analysis Limits for Nickel, Nickel Alloys and Cobalt Alloys
E8 Test Methods for Tension Testing of Metallic Materials
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E76 Test Methods for Chemical Analysis of Nickel-Copper Alloys
E112 Test Methods for Determining Average Grain Size
E350 Test Methods for Chemical Analysis of Carbon Steel, Low-Alloy Steel, Silicon Electrical Steel, Ingot Iron, and Wrought Iron
E1473 Test Methods for Chemical Analysis of Nickel, Cobalt, and High-Temperature Alloys



Military Standards

MIL-STD-271 Nondestructive Testing Requirements for Metals

ASME SB619 / ASTM B619 - 10 Standard Specification for Welded Nickel and Nickel-Cobalt Alloy Pipe

This specification covers welded pipe of nickel and nickel-cobalt alloys (UNS N10001; UNS N10242; UNS N10665; UNS N12160; UNS N10624; UNS N10629; UNS N10675; UNS N10276; UNS N06455; UNS N06007; UNS N06975; UNS N08230; UNS 06002; UNS N06022; UNS N06035; UNS N06058; UNS N06059; UNS N06200; UNS N06985; UNS N06030; UNS R30556; UNS N08031; UNS N06230; UNS N06686; UNS N06210; and UNS R20033). Two classes of pipe are covered as Class I which is as welded and solution annealed or welded and sized and solution annealed; and Class II which is welded, cold worked, and solution annealed. All pipes shall be furnished in the solution annealed and descaled condition. The pipe shall be made from flat-rolled alloy by an automatic welding process with no addition of filler metal. Subsequent to welding and prior to final heat treatment, Class II pipes shall be cold worked either in both weld and base metal or in weld metal only. The material shall conform to the composition limits set by this specification. Tensile strength, yield strength and elongation of the material shall conform to the mechanical requirements. Tension test, flattening test, transverse guided bend test, and hydrostatic or nondestructive electric test shall be performed.

This specification covers welded pipe of nickel and nickel-cobalt alloys (UNS N10001; UNS N10242; UNS N10665; UNS N12160; UNS N10624; UNS N10629; UNS N10675; UNS N10276; UNS N06455; UNS N06007; UNS N06975; UNS N08320; UNS N06002; UNS N06022; UNS N06035; UNS N06058; UNS N06059; UNS N06200; UNS N06985; UNS N06030; UNS R30556; UNS N08031; UNS N06230; UNS N06686; UNS N06210; and UNS R20033)* as shown in Table 1.

This specification covers pipe in Schedules 5S, 10S, 40S, and 80S through 8-in. nominal pipe size and larger as set forth in ANSI B36.19 (see Table 2).

Two classes of pipe are covered as follows:

Class IAs welded and solution annealed or welded and sized and solution annealed.

Class II Welded, cold worked, and solution annealed.

All pipe shall be furnished in the solution annealed and descaled condition. When atmosphere control is used, descaling is not necessary.

The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are for information only.

This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to become familiar with all hazards including those identified in the appropriate Material Safety Data Sheet (MSDS) for this product/material as provided by the manufacturer, to establish appropriate safety and health practices, and determine the applicability of regulatory limitations prior to use.

ASTM Standards

B775 Specification for General Requirements for Nickel and Nickel Alloy Welded Pipe
B899 Terminology Relating to Non-ferrous Metals and Alloys
E527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)

UNS N06002; UNS N06007; UNS N06022; UNS N06030; UNS N06035; UNS N06058; UNS N06059; UNS N06200; UNS N06210; UNS N06230; UNS N06455; UNS N06975; UNS N06985; UNS N08031; UNS N08320; UNS N10001; UNS N10242; UNS N10276; UNS N10624; UNS N10629; UNS N10665; UNS N10675; UNS R30556; welded pipe

ASME SB622 / ASTM B622 - 10 Standard Specification for Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube

This specification covers seamless pipe and tube of nickel and nickel-cobalt alloys. These alloys are classified into different grades according to chemical composition. Mechanical properties of the material like tensile strength, yield strength, and elongation shall be measured. Tension, hydrostatic, and nondestructive electric tests shall be done on each pipe or tube. The mass or weight of each pipe shall be calculated and the chemical composition of each pipe shall be determined.

This specification covers seamless pipe and tube of nickel and nickel-cobalt alloys (UNS N10001, UNS N10242, UNS N10665, UNS N12160, UNS N10675, UNS N10276, UNS N06455, UNS N06007, UNS N08320, UNS N06975, UNS N06002, UNS N06985, UNS N06022, UNS N06035, UNS N08135, UNS N06255, UNS N06058, UNS N06059, UNS N06200, UNS N10362, UNS N06030, UNS N08031, UNS R30556, UNS N08535, UNS N06250, UNS N06060, UNS N06230, UNS N06686, UNS N10629, UNS N06210, UNS N10624, and UNS R20033)* as shown in Table 1.

Pipe and tube shall be supplied in the solution annealed and descaled condition. When atmosphere control is used, descaling is not necessary.

This specification is limited to tubes up to and including 3.5 in. (88.9 mm) outside diameter.

The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.

This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to become familiar with all hazards including those identified in the appropriate Material Safety Data Sheet (MSDS) for this product/material as provided by the manufacturer, to establish appropriate safety and health practices, and determine the applicability of regulatory limitations prior to use.

ASTM Standards

B829 Specification for General Requirements for Nickel and Nickel Alloys Seamless Pipe and Tube
E8 Test Methods for Tension Testing of Metallic Materials
E527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)

seamless pipe; seamless tube; UNS N06002; UNS N06007; UNS N06022; UNS N06030; UNS N06035; UNS N06058; UNS N06059; UNS N06060; UNS N06200; UNS N06210; UNS N06230; UNS N06250; UNS N06255; UNS N06455; UNS N06686; UNS N06975; UNS N06985; UNS N08031; UNS N08135; UNS N08320; UNS N08535; UNS N10001; UNS N10242; UNS N10276; UNS N10624; UNS N10629; UNS N10665; UNS N10675; UNS N12160; UNS R20033; UNS R; ICS Number Code 0556; 23.040.15 (Non-ferrous metal pipes)

ASME SB626 / ASTM B626 - 10 Standard Specification for Welded Nickel and Nickel-Cobalt Alloy Tube

This specification covers welded tubes made from nickel and nickel-cobalt alloys with UNS Nos. N10001, N10242, N10665, N12160, N10629, N10624, N10675, N10276, N06455, N06007, N06975, N08320, N06985, N06002, N06022, N06030, N06035, N06058, N06059, N06200, N06210, N08031, R30556, N06230, N06686, and R20033. These alloys are intended for heat exchanger and condenser tubes and tubes for general corrosive service for heat-resisting applications. The tubes shall be made from flat-rolled alloy by an automatic welding process with no addition of filler metal, and shall be furnished in the solution annealed and descaled conditions. Materials shall adhere to mechanical (tensile strength, yield strength, and elongation), chemical composition, flattening test, flange test, hydrostatic test, pneumatic test, and eddy current test requirements.

This specification covers welded tubes made from the nickel and nickel-cobalt alloys (UNS N10001, UNS N10242, UNS N10665, UNS N12160, UNS N10629, UNS N10624, UNS N10675, UNS N10276, UNS N06455, UNS N06007, UNS N06975, UNS N08320, UNS N06985, UNS N06002, UNS N06022, UNS N06030, UNS N06035, UNS N06058, UNS N06059, UNS N06200, UNS N10362, UNS N06210, UNS N08031, UNS R30556, UNS N06230, UNS N06686, and UNS R20033)* listed in Table 1 intended for heat exchanger and condenser tubes and tubes for general corrosive service for heat-resisting applications.

This specification covers tube 1/8 to 3½ in. (3.2 to 88.9 mm) in outside diameter and 0.015 to 0.148 in. (0.41 to 3.7 mm) inclusive, in wall thickness.

The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.

This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to become familiar with all hazards including those identified in the appropriate Material Safety Data Sheet (MSDS) for this product/material as provided by the manufacturer, to establish appropriate safety and health practices, and determine the applicability of regulatory limitations prior to use.

ASTM Standards

B751 Specification for General Requirements for Nickel and Nickel Alloy Welded Tube
E527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)

UNS N10001; UNS N10242; UNS N10665; UNS N12160; UNS N10629; UNS N10624; UNS N10675; UNS N10276; UNS N06455; UNS N06007; UNS N06975; UNS N08320; UNS N06985; UNS N06002; UNS N06022; UNS N06030; UNS N06035; UNS N06058; UNS N06059; UNS N06200; UNS N06210; UNS N08031; UNS N06230; UNS N06686; UNS R30556; UNS R20033; welded tube


Certificate & Inspection : c/w Calibration Works Certificate EN10204 3.1/DIN 50049 3.1/ISO 10474 3.1 Mill Test Report, NACE MR-01-03/NACE MR-01-75/ISO-15156, European Pressure Equipment Directive PED 97/23/EC, AD 2000-WO, ASME Boiler & Pressure Vessel Code Section-II Part-A Edition 2010, API 6A, with 3.2 certificate duly certified & approved by LRS-Lloyd's Register, GL-Germanischer Lloyd, BV-Bureau Veritas, DNV-Det Norske Veritas, ABS-American Bureau of Shipping, SGS, TUV, RINA, IRS, NORSOK APPROVED STANDARD M630, M650 Rev.3 NADCAP Certified in accordance with SAE Aerospace Standards


If you have any requirement of above items, please feel free to contact us


Regards,


CONTACT PERSON :


MUKESH SHAH
Director
Mobile No. 0091- 9820292499
Email -
rolexmetal@vsnl.net


ROLEX ALLOYS INTERNATIONAL
( High Nickel Alloy & Super Alloy Materials )
57-A, KHATARGALLI
THAKURDWAR
MUMBAI - 400002, INDIA
TEL.No. 0091-22-23858802
TEL.No. 0091-22-23823963
FAX No. 0091-22-23898724
Website : www.rolexalloys.com


CHAIRMAN - chairman@rolexalloys.com
DIRECTOR MANAGING - managingdirector@rolexalloys.com
DIRECTOR TECHNICAL - technicaldirector@rolexalloys.com
INTERNATIONAL SALES - salesinternational@rolexalloys.com
DOMESTIC SALES - salesdomestic@rolexalloys.com
INFORMATION GENERAL - info@rolexalloys.com
GENERAL SALES - sales@rolexalloys.com
SERVICE - service@rolexalloys.com
RECRUITMENT - career@rolexalloys.com
WEBMASTER - webmaster@rolexalloys.com

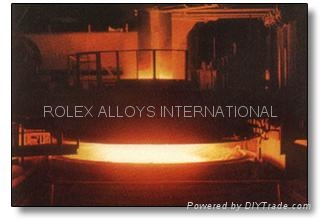

Product Image


Related Products
Cold Rolled File-Steel Profile Section
Cold Rolled File-Steel Profile Section
Hot Rolled Spring Steel Flat Bars
Hot Rolled Spring Steel Flat Bars
Aluminium Alloy 6082 Temper T6 T651 Plate
Aluminium Alloy 6082 Temper T6 T651 Plate
Soft Magnetic Iron Rod Bar
Soft Magnetic Iron Rod Bar

Home  |  Company Profile  |  E-Mail Address  |  Product Catalog  |  Nickel Alloys  |  Nickel 200 N02200  |  Nickel 201 N02201  |  Monel Alloys  |  Monel 400 N04400  |  Monel K-500 N05500  |  Inconel Alloys  |  Inconel 600 N06600  |  Inconel 601 N06601  |  Inconel 625 N06625  |  Inconel 617 N06617  |  Inconel 718 N07718  |  Inconel X-750 N07750  |  Incoloy Alloys  |  Incoloy 800 N08800  |  Incoloy 800H N08810  |  Incoloy 800HT N08811  |  Incoloy 825 N08825  |  Alloy A286 S66286  |  Alloy 330 N08330  |  Alloy 20 N08020  |  Sanicro 28 N08028  |  Alloy 904L N08904  |  SMO254 S31254  |  Hastelloy Alloys  |  Hastelloy C-276 N10276  |  Hastelloy C-22 N06022  |  Hastelloy C-4 N06455  |  Hastelloy B-2 N10665  |  Hastelloy B-3 N10675  |  Hastelloy X N06002  |  Cobalt Alloys  |  Maraging 250/300/350  |  IN713LC Casting  |  IN738LC Casting  |  IN939 Casting  |  Gas Turbine Products  |  Vacuum Melt Alloys  |  Vacuum Melt Spec  |  Welding Wires  |  Filler Metal Wire  |  Inconel Filler Metal  |  Stainless Steel Alloy  |  15-5PH S15500  |  17-4PH S17400  |  AISI 440C S44004  |  AISI 446 S44600  |  NITRONIC 50 S20910  |  NITRONIC 60 S21800  |  Duplex Steel  |  Duplex S31803 A182 F51  |  Duplex 2205 S32205  |  Duplex 329 S32950  |  Super Duplex Steel  |  Super Duplex S32750  |  Super Duplex S32760  |  Nickel & Super Alloys  |  Titanium Alloys  |  Special Alloys  |  Euro Alloys  |  Standard Cast Alloys  |  Hastelloy Cast Alloys  |  Heat Resistant Cast Alloys  |  Inconel Cast Alloys  |  Monel Cast Alloys  |  Stainless Steel Cast Alloys  |  Duplex Cast Alloys  |  Other Cast Alloys  |  Aluminium Alloy Plates  |  Aluminium Alloy Sheets  |  Aluminium Alloy Tubes  |  Aluminium Alloy Bars  |  Fusible Alloys  |  Low Melting Alloys  |  Copper-Nickel Alloys  |  AMS Specification 1  |  AMS Specification 2  |  AMS Specification 3  |  Standards  |  Density  |  Quality  |  Contact Us  |  E-Mail Address  |  Links  |  News  |  Sitemap  |  Mobile Version
Powered by DIYTrade.com
